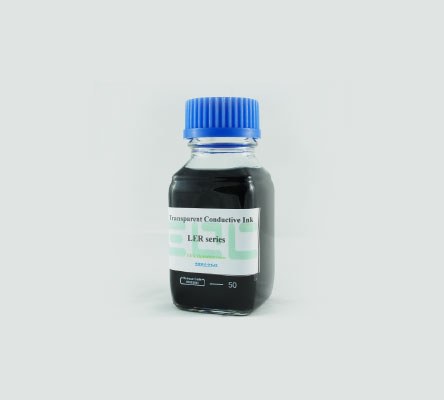

Transparent Conductive Ink

Product description

Main features：

EOC’s LER series inks are transparent and high conductive inks which are water-based and thermosetting materials. EOC’s LER series inks are easy process using roll-to-roll process with microgravure or slide coater.
Application : Transparent conductive film
Consult now
Property
  • (1) Suitable for roll-to-roll production with microgravure or slide coater
  • (2) Water-based ink

Specification

  • Morphology

    Blue liquid

    Blue liquid



  • Solid Content (%)

    1.0±0.3

    0.6±0.3

  • Viscosity (cps，25℃)

    110±20

    50±15

  • pH Value (25℃)

    2±0.5

    2±0.5

  • Density (g/cm3，25℃)

    0.9±0.1

    0.9±0.1

  • Sheet Resistance (Ω/□)*

    150±20

    300±20

  • Coating Area (m2)*

    45~50 (without considering ink lose)

    45~50 (without considering ink lose)

  • Substrate

    PET (corona treatment is required)

    PET (corona treatment is required)

  • Shelf Life (day)

    30

    30)

*Coated by using RDS #12 Drying condition: 150℃ for 2 min. The substrate needs to treat by corona treatment before ink coating.
