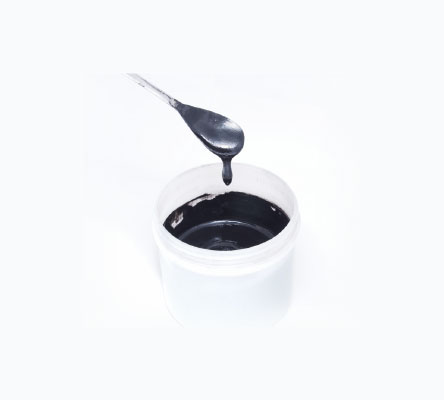

Electrothermal Carbon Paste

Product description

Main features：

EOC’s electrothermal carbon pastes are water-based and thermosetting materials which are suitable for screen-printing process.
Consult now
Property
  • (1) The highest heating temperature is 250℃
  • (2) Suitable for screen-printing or blade coating process
  • (3) Water-based paste and easy to clean
  • (4) Low odor during sintering process

Specification

  • Morphology

    Black glue

    Black glue

  • Solid Content (%)

    28±2

    32±2

  • Viscosity (cps，25℃)

    15000±1000

    14000±1000

  • Sheet Resistance (Ω/□)*

    330±50

    350±50

  • HeatingTemperature (℃)**

    < 100

    < 250

  • Substrate

    PET、PI

    PET、PI

  • Shelf Life (day)

    90

    90

* Brookfield, DV-Prime, CPE-52,10rpm,25℃
**Printed by using 350 mesh and sintering based on user menu
